Robotic automatic screwfeeder assembly screwdriver for production assembly

FOB Reference Price:Get Latest Price
US $4,500-5,500 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Shen Zhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Topbest
Model Number:
Topbest-SX-5331
Power Source:
Electricity+pneumatic
Type:
Multifuctional Screwdriver
Rated Voltage:
220V
Frequency:
50Hz
Rated Input Power:
500W
Max. Torque:
3~25kgf. Cm
No-Load Speed:
1000r.p.m
Dimensions:
730*630*850mm
Weight:
70KG
Product Name:
Automatic Desktop Electric Screwdriver Machine
working Range:
480*280*80MM
Positioning precision:
±0.02mm
Tighten efficiency:
60-80pcs/min
Working temperature:
5-40℃
working humidity:
20-90% RH
Length of screw:
M1.2~4.0 Lengtth≤14mm
Air pressure:
0.4~0.6Mpa
Color:
Feature:
High Speed
Packaging & Delivery
Packaging Details
Wooden Box Package
Delivery Time
within 15-20 days
Product Description



Why screwdriver robot?

Automatic Screwdriver robot can Solve large, medium and small businesses artificially shortages, production efficiency, low labor and material consumptions cost increase, management and so on many substantive issues.

Features-Advantages

Functions.

1. Wide universality, small in size, can cooperate with production line, convenient for product replacement.
2.With intelligent inspection function, inspection miss locked,unstable locked,loose screw and so on.
3. The Y axis can be made into double-station(that is, double Y axis),so the operator can load alternately.
5. High degree of automation, easy operation which the staff can master and debug quickly.
6. Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.
7. Touch screen display or teach pendant programmable achieve more operations,Through a simple programming, can be put into production, convenient for production and management..
8. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.

Advantages.

1.Reduce cost:High-efficiency operation is achieved by only one person.one person's efficiency amounts to 3-5 persons' efficiency
2.High efficiency:the number of electric screwdriver of the Z axis is customizable according to customers' requirements. Several electric screwdrivers can work at the same time.
3.More relax: single equipment for single worker, Just finished loading,Reduce the labor intensity of workers.
4.Reliability:Automatic alarm system, working >20 hours
5.Good image:Iintelligent automatic equipment presents a new appearance of production line in factories,which helps enterprises establish a image of high technology
6.Customization:Robot can be customized based on customers' requirements on products assembly

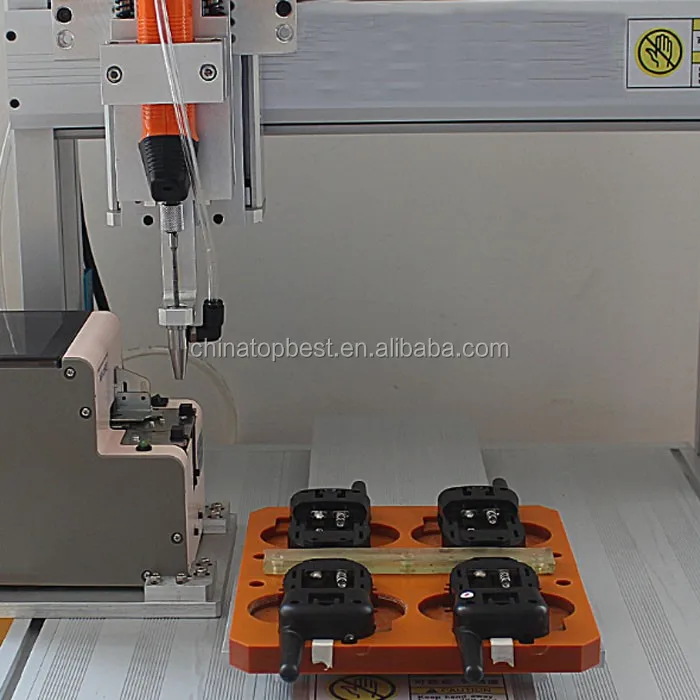

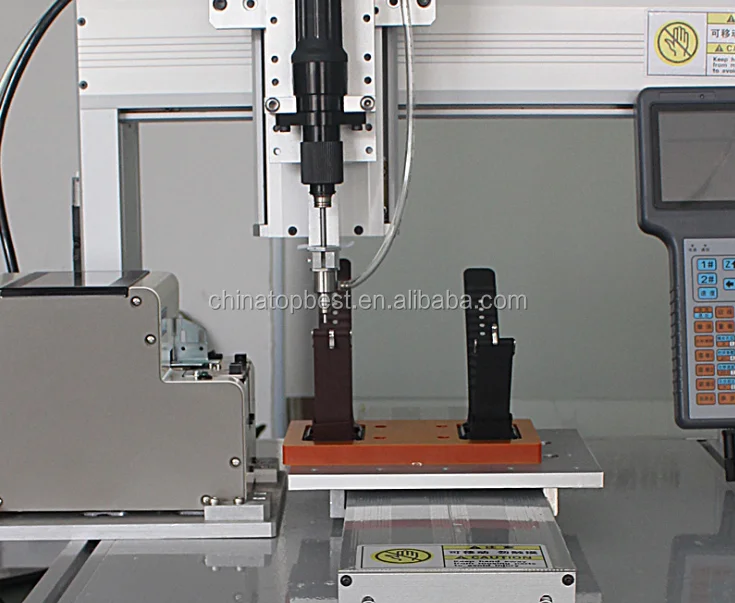

Detailed Images
Product Application
Certifications
Packing & Delivery
Company Information

We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.

Nearly every day from customers and abroad come to our factory, we organiz technicians to show the machine operation. Free training is available. Warmly welcome you to visit our factory!

FAQ

1.How about the package? Is it safe during the delivery?
All machine is packed by standard strong wooden carton with foam inside.

2. What is the delivery way? How many days will the machine?
We will ship the machine by DHL, Fedex, UPS, etc (Door to Door Service), around 5 days to arrive.Or by Air to your airport (Door to Airport Service), around 3 days to arrive. Or by Sea to the Seaport, Minium CBM requirement: 1 CBM, around 30days to arrive.

3. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.

4, Is this
 machine easy to use? If I have no experience,  can i also operate it well?

Do you provide the user manual and operating videos to support us?
Yes, our machine is designed to use easy, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free, and the operation video is available.

5, If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

6. What is the payment way?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Paypal, etc.
