Two soldering station automatic PCBA soldering Machine

FOB Reference Price:Get Latest Price
US $4,000-5,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Soldering Machine
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Topbest
Model Number:
Topbest-T-5331R
Rated Duty Cycle:
24 Hour Continually
Rated Capacity:
Option
Voltage:
220V
Current:
Alternating Current
Dimensions:
850x600x930mm
Weight:
70KG
Certification:
ISO9001/CE
Usage:
Soldering Components
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1year
X/Y/Z axis move speed (mm/sec):
X,Y 600-800MM/S, Z 400MM/S
Control Panel:
7 inch Real Color Touch Screen or teach pendant (optional)
Drive Method:
Rolling Bar & Belt (optional)
Solder feeding manner:
editable multi-stage feeding mode
Main Control Method:
Embedded Control Panel
Repetitive Positioning Accuracy:
+/- 0.02 mm/ Axis
Operation Method:
Online Real Time Multi-touch Operation
Motor system:
Stepping level precision motor
Transmission mode:
Synchronous belt+ precision guide rail
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Box Package
Port
Shen Zhen
Lead Time :
within 10-15 days
Product Description

1.Brief introduction:

Automatic Soldering robot can Solve large, medium and small businesses artificially shortages, production efficiency, low labor and material consum accounts cost increase, management and so on many substantive issues.

2.Operation theory:


Run mode:
By application of multi-axis drive manipulator and software control to adapt atom positioning of the soldering head.

Welding manner:
Thermostatically heating by solder iron under high-frequency eddy current.

Working principle:
Fix welding solder at the manipulator, move to the mission welding coordinate, feed solder wire automatically at head of solder iron; solder wire welds under high temperature and come into joint with the target
Product parameters
Product structure
Features-Advantages

1. X, Y, Z axis with precision parts in Japan, with sophisticated stepper motor, with perfect performance and stability.


2. high precision and high rigidity of the structural design, long-term guarantee equipment accuracy, high stability and user-friendly operating system, permit the field operators to still skilled operation.

3.Perfect soldering process settings, Functions include spot welding, drag welding and automatic washing., Each instruction is independent of preheating the tin length, preheating, welding time, back to the tin soldering parameters, such as time, lift height welding parameter.

4.With solder joint parameters copy, array, translation, batch editing, type bulk changes and so rapid programming instructions, it is improving the efficiency of editing.

5.Support to the input of PLT format file, also can be available for the direct input of PLT format file, which saves complex manual teaching and is more convenient and accurate.

6.The machine can be offline or independent operation, welding parameters needs be stored in SD card for it can be convenient to copy and save from the equipment parameters.

7. Send tin device has two options(functions of breaking tin or without breaking tin)

8.Suitable for various soldering applications.Almost all components that can be soldered by hand that can be soldered by the robot, like .: normal PCB soldering, car electronic components, other electronics products, etc.
Application

Suitable for automotive electronics, digital electronics, electronic, LCD, circuit boards and other production industries, connectors, RJ/network transformer, platoon line, FPCB welding, COF package for welding, computer motherboards, CABLE, speaker, and motor high-frequency head, photoelectric products and all high quality welding.


Packaging & Shipping

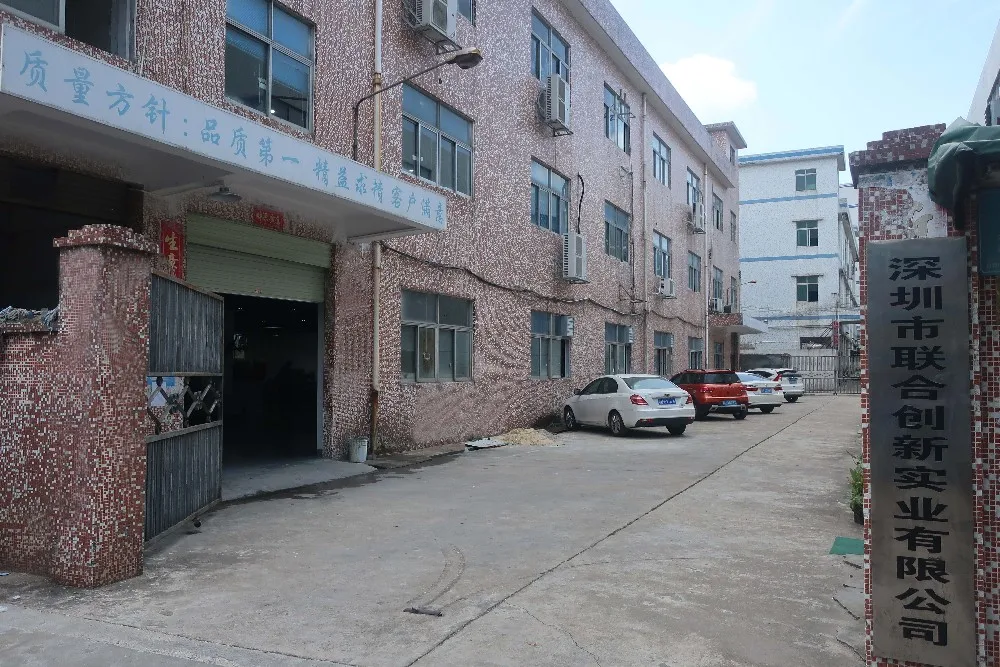

Company Information

We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.

Nearly every day from customers and abroad come to our factory, we will arrange technicians to show the machine operation. Free training is available. Warmly welcome you to visit our factory!

FAQ

1.How about the package? Is it safe during the delivery?
All machine is packed by standard strong wooden carton with foam inside.


2. What is the delivery way? How many days will the machine?
We will ship the machine by DHL, Fedex, UPS, etc (Door to Door Service), around 5 days to arrive.Or by Air to your airport (Door to Airport Service), around 3 days to arrive. Or by Sea to the Seaport, Minium CBM requirement: 1 CBM, around 30days to arrive.


3. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.


4, This machine is easy to use? If I have no experience, I can also operate it well
Do you provide the user manual and operating videos to support us?
Yes, our machine is designed to use easy, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free, and the operation video is available.


5, If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.


6. What is the payment way?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Paypal, etc.



If any question, you can send INQUIRY, or CHAT us, we will be glad to service you!
