SMT DIP automatic soldering machine with Point Soldering and Drag Soldering function

FOB Reference Price:Get Latest Price
US $3,500-4,500 / Sets | 1 Set/Sets (Min. Order)
Contact Supplier Start Order
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Topbest
Model Number:
Topbest-T-441R
Warranty:
1year
X/Y/Z axis move speed (mm/sec):
X,Y 600-800MM/S, Z 400MM/S
Control Panel:
7 inch Real Color Touch Screen or teach pendant (optional)
Drive Method:
Rolling Bar & Belt (optional)
Solder feeding manner:
editable multi-stage feeding mode
Main Control Method:
Embedded Control Panel
Repetitive Positioning Accuracy:
+/- 0.02 mm/ Axis
Operation Method:
Online Real Time Multi-touch Operation
Motor system:
Stepping level precision motor
Transmission mode:
Synchronous belt+ precision guide rail
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Box Package
Port
Shen Zhen
Lead Time :
within 10-15 days
Product structure
Product Description

1.Brief introduction:

Automatic Soldering robot can Solve large, medium and small businesses artificially shortages, production efficiency, low labor and material consum accounts cost increase, management and so on many substantive issues.

2.Operation theory:


Run mode:
By application of multi-axis drive manipulator and software control to adapt atom positioning of the soldering head.

Welding manner:
Thermostatically heating by solder iron under high-frequency eddy current.

Working principle:
Fix welding solder at the manipulator, move to the mission welding coordinate, feed solder wire automatically at head of solder iron; solder wire welds under high temperature and come into joint with the target
Product parameters
Dimension
815X600X880mm(L*W*H)
Working Range
380*380*80mm(X*Y*Z)(X*Y*Z)
Machine Weight
65KG
Working Temperature
5-40C
Working Humidity
20-90% RH
Power Voltage
AC220V 50Hz
X / Y / Z axis move speed (mm / sec)
X, Y 600-800MM / S, Z 400MM / S
Repetitive Positioning Accuracy
+/- 0.02 mm / Axis
Control Panel
 Teach pendant
Drive Method
precision stepping motor+synchronous belt
Temperature range
0-550C
Diameter of Tin Thread
0.4-1.6mm
Soldering Method
Point Soldering/Drag Soldering
Temperature Control Accuracy
± 0.2C
Heating Power
200W
Functions-Advantages

Functions:

Spot soldering,drag soldering,automatic cleaning and multi-angle soldering are available.

Position calibration,soldering dot array,parameter copy,automatic location and skip are available.

Teaching programming enables customers to implement all types of hand soldering upon their requirement.

Program calibration achieves workpiece integral coordinate position compensation.

Program insertion and deletion make program revised easily and rapidly.

Intelligent control system achieves accurate delivery of solder,speed,time,temperature and quantity of solder can be adjusted and controlled accurately

Advantages:

Cost saving:High-efficiency operation is achieved by only one person.one person's efficiency amounts to 3-5 persons' efficiency

Good quality:Good soldering uniformity achieved high yield

High efficiency:Multiple soldering tips work together at the same time to achieve high efficiency

More simple:One worker can operate 2-3 robots.what this worker does is only pick and place fixture

Customization:Robot is strictly customized based on customers' requirements on products and soldering production,in line with requirements of production lines

Good image:Intelligent automatic equipment presents a new appearance of production line in factories,which helps enterprises establish a image of high technology

Application

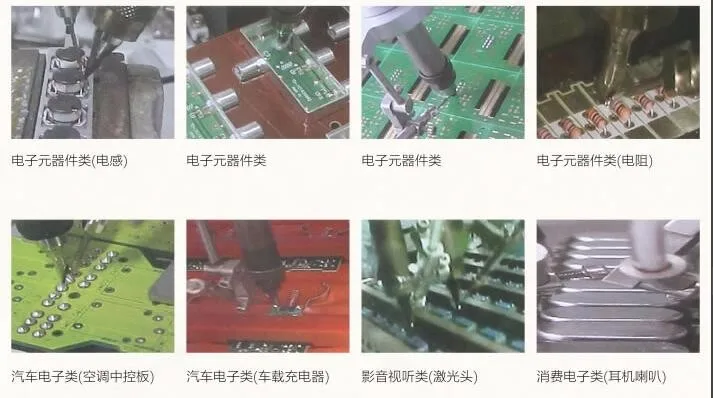

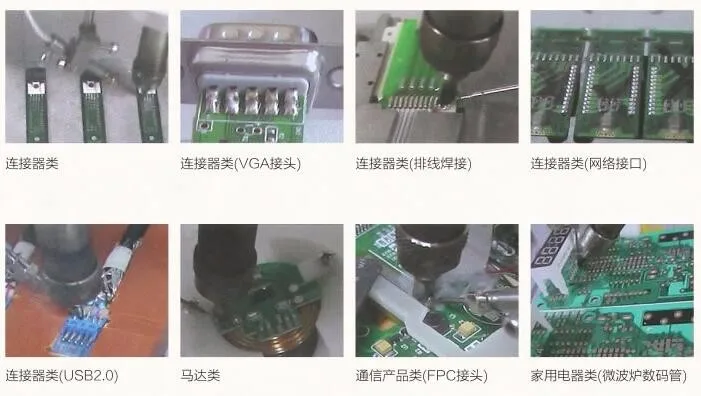

Suitable for automotive electronics, digital electronics, electronic, LCD, circuit boards and other production industries, connectors, RJ/network transformer, platoon line, FPCB welding, COF package for welding, computer motherboards, CABLE, speaker, and motor high-frequency head, photoelectric products and all high quality welding.
