High Precision automatic pcb spot soldering machine

FOB Reference Price:Get Latest Price
US $4,000-5,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Shen Zhen
Report Suspicious Activity
Overview
Quick Details
Type:
Soldering Machine
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Topbest
Model Number:
Topbest-T-5331R
Rated Duty Cycle:
24 Hour Continually
Rated Capacity:
Option
Voltage:
220V
Current:
Alternating Current
Dimensions:
850X600X930mm
Weight:
70KG
Certification:
CE ISO
Usage:
Pcb Soldeing
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1year

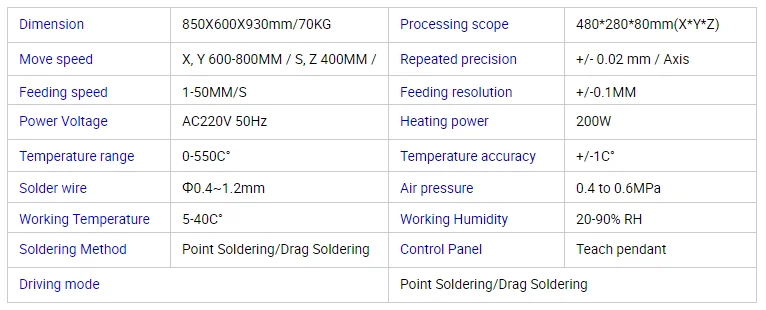

X/Y/Z axis move speed (mm/sec):
X,Y 600-800MM/S,Z 400MM/S
Repeated precision::
+/-0.02MM
Heating power:
200W
Temperature control range:
0-550C°
Temperature control accuracy:
+/-1C°
Air pressure requirement:
0.4 to 0.6MPa
Working Temperature:
5-40C°
Working Humidity:
20-90% RH
Processing scope:
480*280*80MM
Packaging & Delivery
Packaging Details
Wooden Box Package
Delivery Time
within 10-15 days
Product Description

Operating principle.

 Run mode:By application of multi-axis drive manipulator and software control to achieve precise positioning of the soldering head.
Soldering manner:Thermostatically heating by solder iron under high-frequency eddy current.
Working principle:Fix solder iron at the manipulator, move to the appointed soldering coordinate, feed solder wire automatically at head of solder iron; solder wire solders under high temperature and come into joint with the target.

Why soldering robot?

Soldering robot were developed in order to achieve soldering automation for mass production. It solves a variety of automated production issues with its flexible multi-axis joints. Various applications can also be additional for automation and soldering problems. The series have achieved high speed, accuracy and quality, which are able to automate even difficult soldering application samples. Here is the ultimate soldering robot, which will solve your issues.

Functions-Features

Features.

Cost saving:High-efficiency operation is achieved by only one person.one person's efficiency amounts to 3-5 persons' efficiency
Good quality:Good soldering uniformity achieved high yield
High efficiency:Multiple soldering tips work together at the same time to achieve high efficiency
More simple:One worker can operate 2-3 robots.what this worker does is only pick and place fixture
Customization:Robot is strictly customized based on customers' requirements on products and soldering production,in line with requirements of production lines
Good image:Intelligent automatic equipment presents a new appearance of production line in factories,which helps enterprises establish a image of high technology

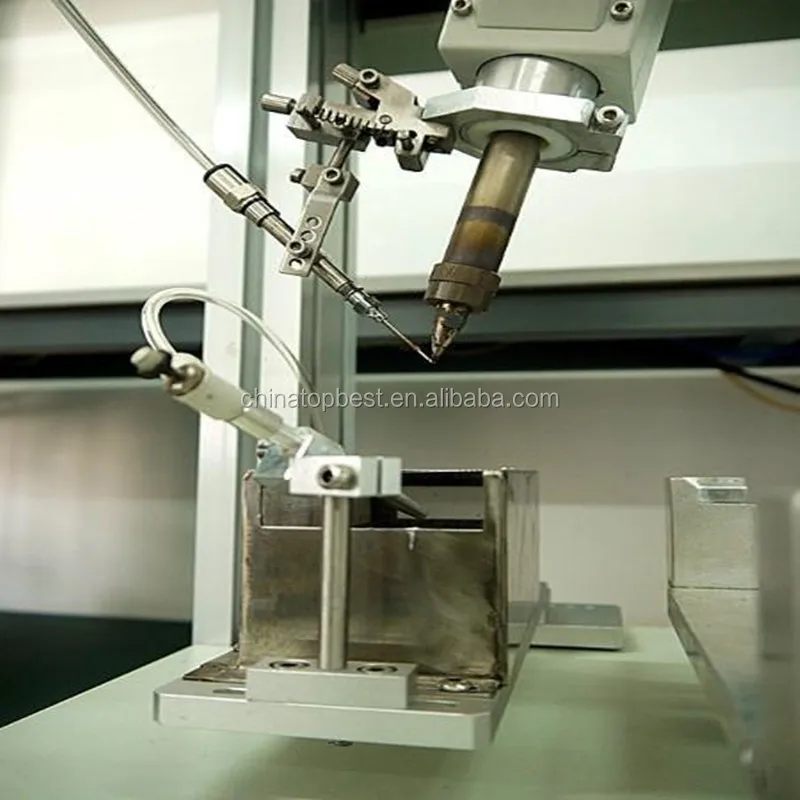

Detailed Image

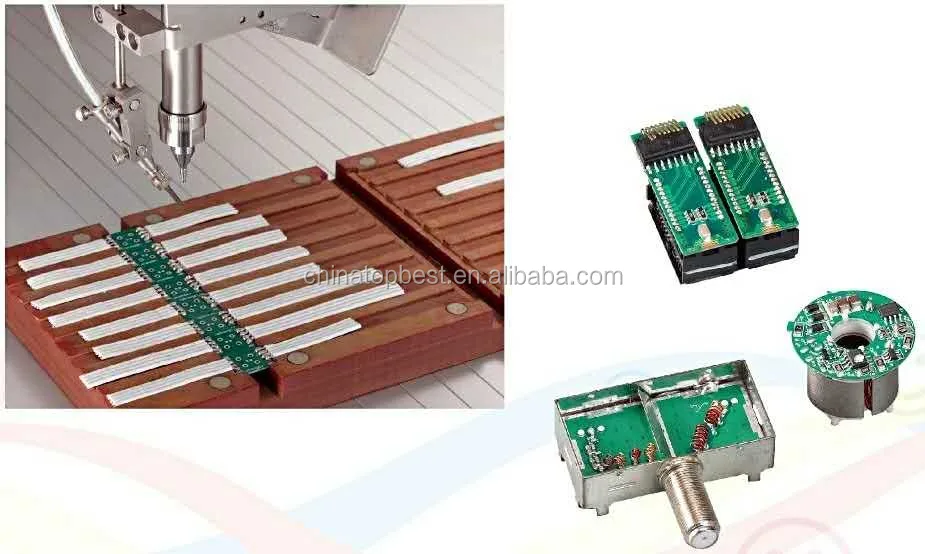

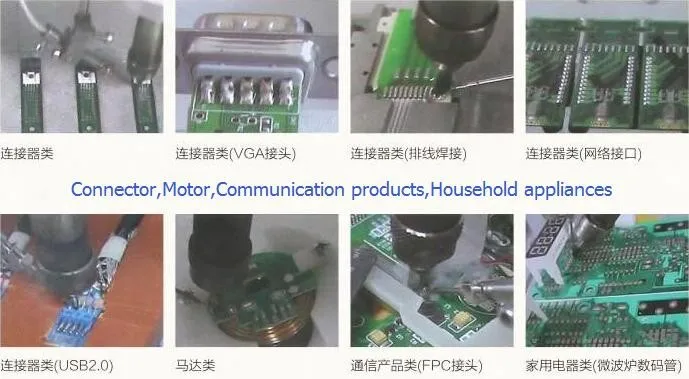

Application Cases
Certifications
Packaging & Shipping
Company Information

We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.

Nearly every day from customers and abroad come to our factory, we will arrange technicians to show the machine operation. Free training is available. Warmly welcome you to visit our factory!

FAQ

1.How about the package? Is it safe during the delivery?
All machine is packed by standard strong wooden carton with foam inside.


2. What is the delivery way? How many days will the machine?
We will ship the machine by DHL, Fedex, UPS, etc (Door to Door Service), around 5 days to arrive.Or by Air to your airport (Door to Airport Service), around 3 days to arrive. Or by Sea to the Seaport, Minium CBM requirement: 1 CBM, around 30days to arrive.


3. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.


4, This machine is easy to use? If I have no experience, I can also operate it well
Do you provide the user manual and operating videos to support us?
Yes, our machine is designed to use easy, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free, and the operation video is available.


5, If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.


6. What is the payment way?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Paypal, etc.



If any question, you can send INQUIRY, or CHAT us, we will be glad to service you!
