china automatic screw machine with 1 screwdriver and two working station

FOB Reference Price:Get Latest Price
US $4,500-5,500 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Shen Zhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Topbest
Model Number:
Topbest-SX-5331
Power Source:
Electricity+pneumatic
Type:
Multifuctional Screwdriver
Rated Voltage:
220V
Frequency:
50Hz
Rated Input Power:
500W
Max. Torque:
3~25kgf. Cm
No-Load Speed:
1000r.p.m
Dimensions:
730*630*850mm
Weight:
70KG
Product Name:
Automatic Desktop Electric Screwdriver Machine
working Range:
480*280*80MM
Positioning precision:
±0.02mm
Tighten efficiency:
40pcs/min
Working temperature:
5-40℃
working humidity:
20-90% RH
Length of screw:
M1.2~4.0 Lengtth≤14mm
Air pressure:
0.4~0.6Mpa
Color:
Feature:
High Speed
Packaging & Delivery
Packaging Details
Wooden Box Package
Delivery Time
within 15-20 days
Product Description

Brief introduction:

Automatic Screw locking robot can Solve large, medium and small businesses artificially shortages, production efficiency, low labor and material consumptions cost increase, management and so on many substantive issues.

This machine includes two parts: electric screwdriver and automatic screwfeeder
It puts the automatic screwfeeder together with the electric screwdriver in order to achieve the complement of screw transmission and lock, which can improve the production efficiency and save manpower. Once the screwdriver is lifted after locking a screw, another screw will be sent repeatedly to Continue the operation, which is particular suitable for the work piece of multi-station with the same specification.
Product parameters
Machine Dimension
730*630*850MM
Working Range
480*280*80MM
Machine  Weight
70KG
Power supply
AC220V/50HZ
Air pressure
0.4~0.6Mpa
Working temperature
5-40℃
Working humidity
20-90% RH
Control Panel
7 inch Real Color Touch Screen or teach pendant (optional)
Motor system
precision stepper moter
Transmission mode
timing belt + screw rod +guide rail
Module running speed
 Max X,Y 800-1000MM / S ,Z 600MM/S
Torque Range
0.5~15kgf.cm (optional)
Positioning precision
±0.02mm
screwdriver Brand
KILEWS(optional)
Tighten efficiency
About 40pcs/min(according to the screw type)
Feeder mode
Adsorption
Product structure
Features-Advantages

1.Possess intelligent inspection function, capable to detect fault and loose threads, as well asomitted locking

2.Strong flexibility: standard universal holding fixtures be suitable for various sorts of screw locking.

3.Broad versatility: can apply to M1-M4 screw locking by replacement of the pin screw.

4.Smart shape and the standard take-out & put-in outline make it convenient to stay at production line.

5.Double Y-axis design achieves working mode alternation, which maximize the producing efficiency.

6. main parts are die steel production, abrasion resistant plastic deformation, equipment, body spray paint, oil and scratch resistant

7.more humane touch-screen or teach box operation and ease of operation, external technical parameters and manual test function can be prepared adjusted by technicians.

Product Application

Be suitable for screw locking of various consumer electronics, e.g. mobile phone, wireless phone, calculator, navigator, audio device, camera, laptop, tablet PC, learning machine, small appliances, etc.

Packing & Delivery

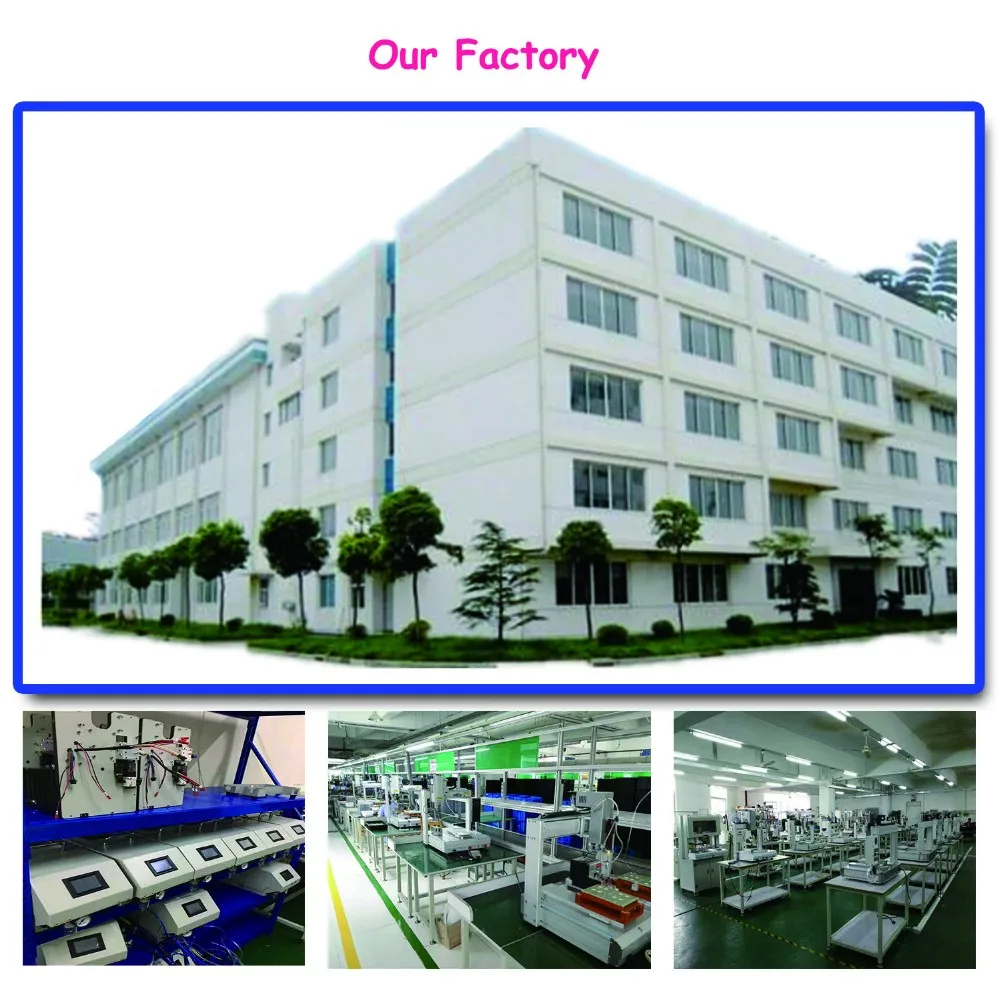

Company Information

We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.

Nearly every day from customers and abroad come to our factory, we organiz technicians to show the machine operation. Free training is available. Warmly welcome you to visit our factory!

FAQ

1.How about the package? Is it safe during the delivery?
All machine is packed by standard strong wooden carton with foam inside.

2. What is the delivery way? How many days will the machine?
We will ship the machine by DHL, Fedex, UPS, etc (Door to Door Service), around 5 days to arrive.Or by Air to your airport (Door to Airport Service), around 3 days to arrive. Or by Sea to the Seaport, Minium CBM requirement: 1 CBM, around 30days to arrive.

3. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.

4, Is this
 machine easy to use? If I have no experience,  can i also operate it well?

Do you provide the user manual and operating videos to support us?
Yes, our machine is designed to use easy, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free, and the operation video is available.

5, If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

6. What is the payment way?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Paypal, etc.


If any question, you can send INQUIRY, or CHAT us, we will be glad to service you!
