production line PCBA automatic selective wave soldering machine

FOB Reference Price:Get Latest Price
US $3,500-4,500 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Shen Zhen
Report Suspicious Activity
Overview
Quick Details
Type:
Soldering Machine
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Topbest
Model Number:
Topbest-T--441R
Rated Duty Cycle:
24 Hour Continually
Rated Capacity:
Option
Voltage:
220V
Current:
Alternating Current
Dimensions:
815X600X880mm
Weight:
65KG
Certification:
CE ISO
Usage:
Soldering Components
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1year
X/Y/Z axis move speed (mm/sec):
X,Y 600-800MM / S ,Z 400MM/S
Control Panel:
7 inch Real Color Touch Screen or teach pendant (optional)
Drive Method:
Rolling Bar & Belt (optional)
Solder feeding manner:
editable multi-stage feeding mode
Main Control Method:
Embedded Control Panel
Repetitive Positioning Accuracy:
+/- 0.02 mm/ Axis
Operation Method:
Online Real Time Multi-touch Operation
Motor system:
Stepping level precision motor
Transmission mode:
Synchronous belt+ precision guide rail
Packaging & Delivery
Packaging Details
Wooden Box Package
Delivery Time
within 10-15 days

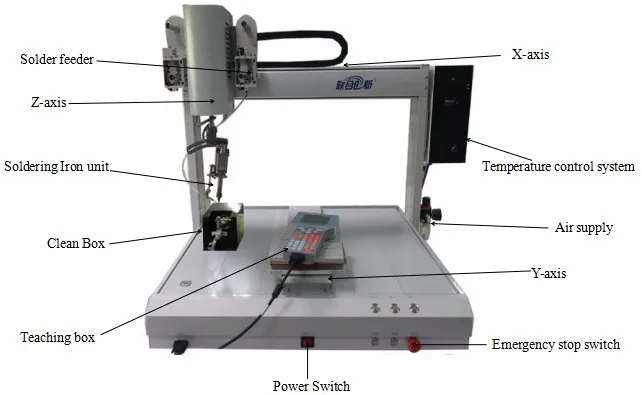

Product Description

1.Brief introduction:

Automatic Soldering robot can Solve large, medium and small businesses artificially shortages, production efficiency, low labor and material consum accounts cost increase, management and so on many substantive issues.

2.Operation theory:


Run mode:
By application of multi-axis drive manipulator and software control to adapt atom positioning of the soldering head.

Soldering manner:
Thermostatically heating by solder iron under high-frequency eddy current.

Working principle:
Fix welding solder at the manipulator, move to the mission welding coordinate, feed solder wire automatically at head of solder iron; solder wire welds under high temperature and come into joint with the target
Product parameters
Dimension
815X600X880mm(L*W*H)
Working Range
380*380*80mm(X*Y*Z)
Machine Weight
65KG
Working Temperature
5-40C
Working Humidity
20-90% RH
Power Voltage
AC220V 50Hz
Heating Power
200W
X / Y / Z axis move speed (mm / sec)
Max X, Y 600-800MM / S, Z 400MM / S
Repetitive Positioning Accuracy
+/- 0.02 mm / Axis
Control Panel
7 inch Real Color Touch Screen or teach pendant (optional)
Drive Method
Rolling Bar & Belt (optional)
Main Control Method
Embedded Control Panel
Motor system
Stepping level precision motor
Transmission mode
Synchronous belt+ precision guide rail
Temperature range
0-550C
Diameter of Tin Thread
0.4-1.6mm
Soldering Method
Point Soldering/Drag Soldering
Temperature Control Accuracy
± 0.2C
Iron Tip Cleaning
Automatic air cleaning
Features-Advantages

Functions:

1.Spot soldering,drag soldering,automatic cleaning and muti-angle soldering are available.
2.Position calibration,soldering dot array,parameter copy,automatic location and skip are available.

3.Teaching programming enables customers to implement all types of hand soldering upon their requirement.
4.Program calibration achieves workpiece integral coordinate position compensation.
5.Program insertion and deletion make program revised easily and rapidly.
6.Intelligent control system achieves accurate delivery of solder,speed,time,temperature and quantity of solder can be adjusted and controlled accurately

Advantage:

Cost saving:High-efficiency operation is achieved by only one person.one person's efficiency amounts to 3-5 persons' efficiency.
Good quality:Good soldering uniformity achieved high yield
High efficiency: Multiple soldering tips work together at the same time to achieve high efficiency.
More simple: One worker can operate 2-3 robots.what this worker does is only pick and place fixture.
Customization: Robot is strictly customized based on customers' requirements on products and soldering production,in line with requirements of production lines.
Good image: Intelligent automatic equipment presents a new appearance of production line in factories,which helps enterprises establish a image of high technology.


Product structure
Application

Suitable for automotive electronics, digital electronics, electronic, LCD, circuit boards and other production industries, connectors, RJ/network transformer, platoon line, FPCB welding, COF package for welding, computer motherboards, CABLE, speaker, and motor high-frequency head, photoelectric products and all high quality welding.


Packaging & Shipping
Company Information

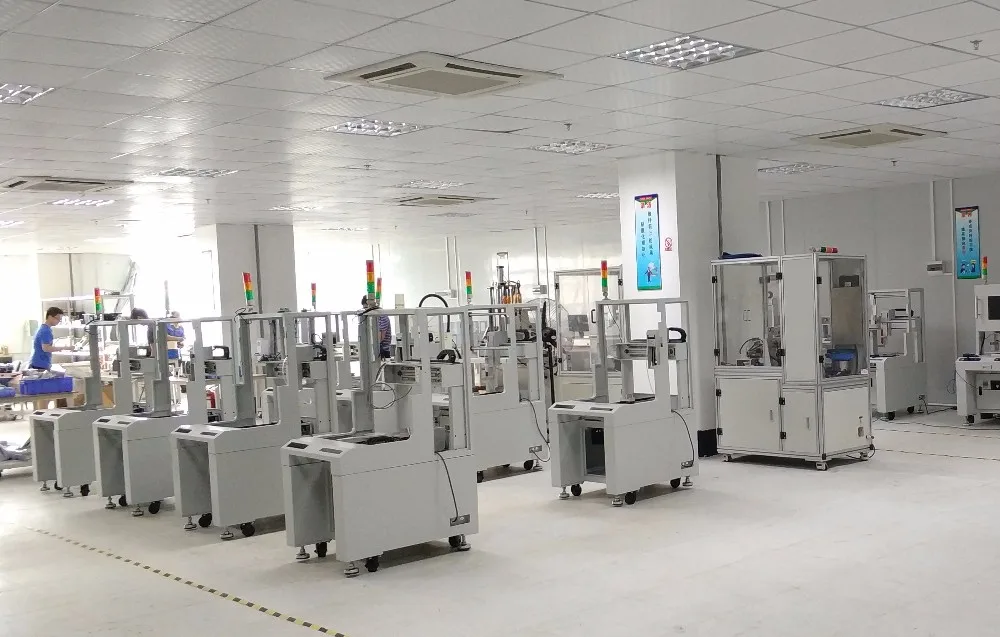

We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.

Nearly every day from customers and abroad come to our factory, we will arrange technicians to show the machine operation. Free training is available. Warmly welcome you to visit our factory!

FAQ

1.How about the package? Is it safe during the delivery?
All machine is packed by standard strong wooden carton with foam inside.


2. What is the delivery way? How many days will the machine?
We will ship the machine by DHL, Fedex, UPS, etc (Door to Door Service), around 5 days to arrive.Or by Air to your airport (Door to Airport Service), around 3 days to arrive. Or by Sea to the Seaport, Minium CBM requirement: 1 CBM, around 30days to arrive.


3. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.


4, This machine is easy to use? If I have no experience, I can also operate it well
Do you provide the user manual and operating videos to support us?
Yes, our machine is designed to use easy, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free, and the operation video is available.


5, If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.


6. What is the payment way?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Paypal, etc.



If any question, you can send INQUIRY, or CHAT us, we will be glad to service you!
