Automatic screw driving assembly machine for electronic Assembly

FOB Reference Price:Get Latest Price
US $1,500-1,800 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Topbest
Model Number:
Topbest-SC-2
Power Source:
Electricity+pneumatic
Type:
Multifuctional Screwdriver
Rated Voltage:
220V
Frequency:
50Hz-60Hz
Rated Input Power:
60W
Max. Torque:
15kgf.cm / 1.5N.m
No-Load Speed:
2000r.p.m
Dimensions:
390*260*260mm
Weight:
15KG
Product Name:
Handheld Electric Screwdriver Machine
Tighten efficiency:
50-70pcs/mins (depend on the length of the screws)
Working temperature:
5-40℃
working humidity:
20-90% RH
Suitable for:
M1-M4 screw
Air pressure:
2-3 Kgf/Cm2
Color:
Feature:
High Speed
Certification:
ISO9001
Packing:
1 SET / Box
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton Box
Port
Hong Kong
Lead Time :
within 15-20 days
Product Description

Brief introduction:

Hand-held automatic locking screw machine feeds screws in a turbine way and order screws on a vibration guide rail, and transport screws to Screw Sorting System  through magnetic resonance,  then sort one screw per time and send it to screwdriver nozzle, finally electric or pneumatic screwdriver will lock the screw into products.
Product parameters
Machine Dimension
350*400*220mm
Machine  Weight
15KG
Power supply
AC220V/50HZ
Air pressure
2-3 KGF/CM2
Working temperature
5-40C
Working humidity
20-90% RH
Max. Torque
1-4m
Feeder capacity
M2*6  5000PCS
Locking speed
50-70pcs/mins (depend on the length of the screws)
Screw come put speed
0.5s/pcs
Feeder mode
Blowing
Screwdriver brand
 KILEWS
Product structure
Features-Advantages

1.Automatic screw feeding, sorting and locking for various shapes screws.One-hand operation.

2.Torsion precision and convenient adjustment, ensure the quality of screw locking

3.Turbine feeding, low volume and noise, convenient maintenance. Light weight and small, mobility and     save space.

4.  Warning function when lack of screws.(Acousto-optic alarm)

5. High efficiency. No need to pick up screws, move screws and put screws. Just need to lock the screws   aimed at the screw hole.

6. Sensor controls screws feeding one by one to avoid  feeding repetition.

7. Can lock screws very fast, around lock 60 screw per minute.

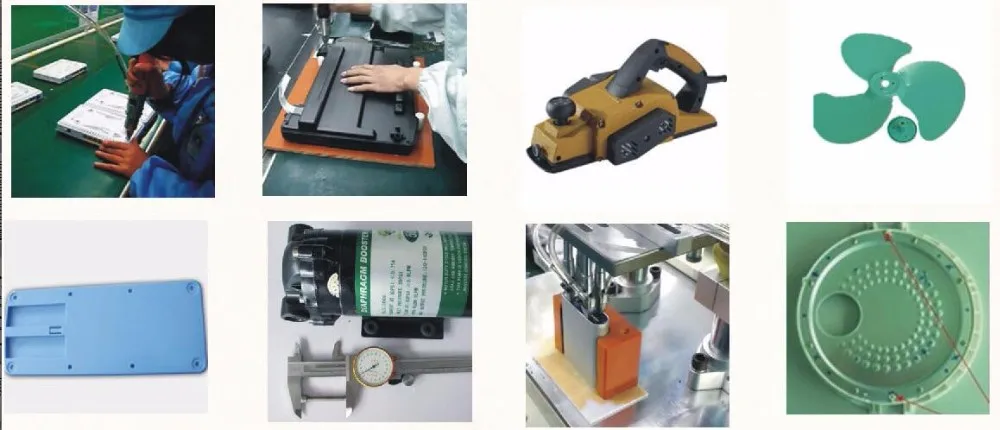

Product Application

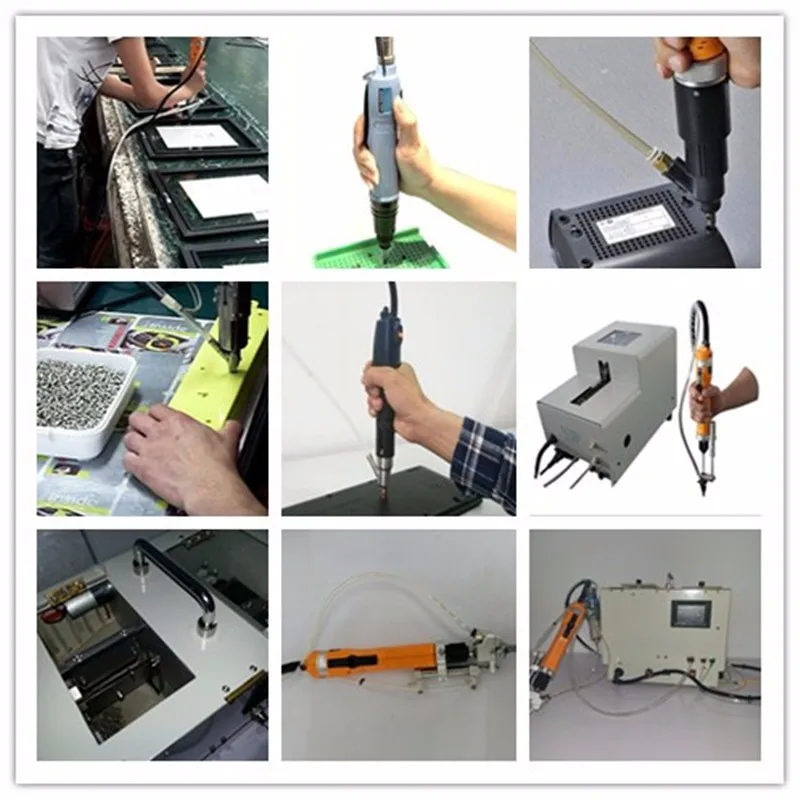

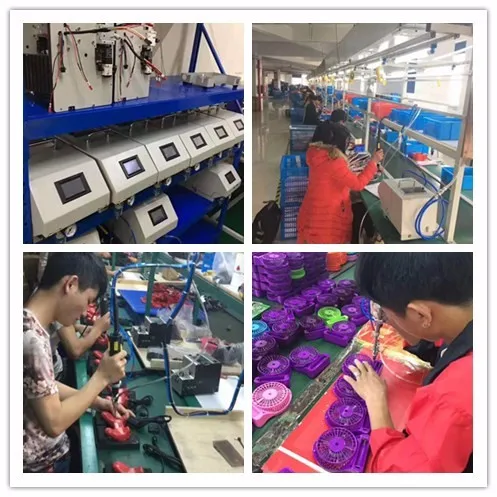

Handheld auto screw lock machine, screw locking machine is widely used in various industries, such as mobile phones, hard drives, keyboards, toys, LCD / LED modules, communications equipment, electrical appliances, auto parts and other electronic processing assembly.

Packing & Delivery
Company Information

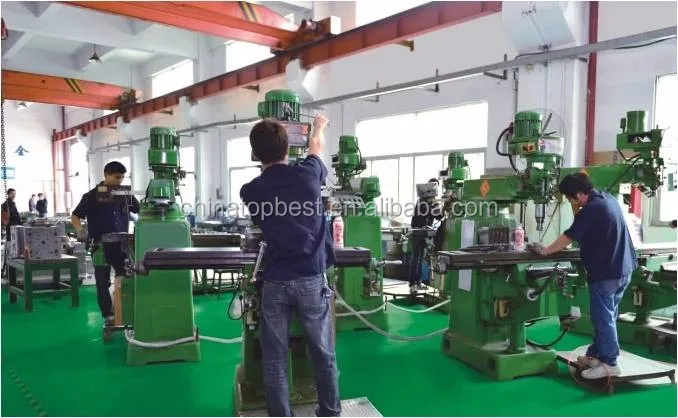

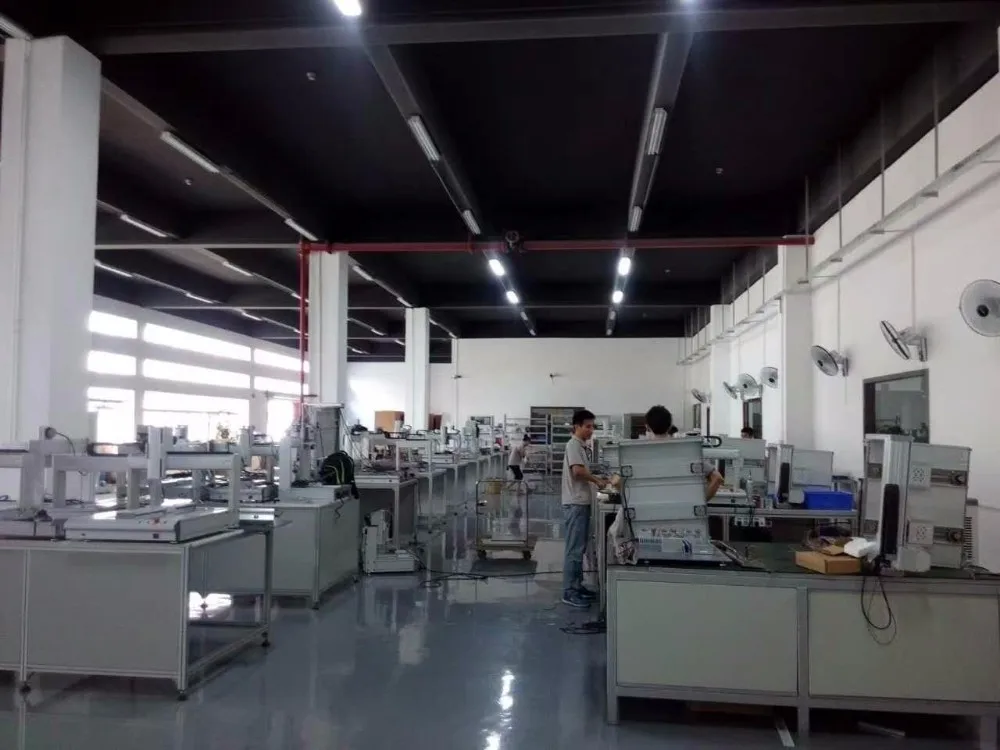

We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
Nearly every day from customers and abroad come to our factory, we arrange technicians to show the machine operation. Free training is available. Warmly welcome you to visit our factory!

FAQ

1.How about the package? Is it safe during the delivery?
All machine is packed by standard strong wooden carton with foam inside.

2. What is the delivery way? How many days will the machine?
We will ship the machine by DHL, Fedex, UPS, etc (Door to Door Service), around 5 days to arrive.Or by Air to your airport (Door to Airport Service), around 3 days to arrive. Or by Sea to the Seaport, Minium CBM requirement: 1 CBM, around 30days to arrive.

3. Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.

4, Is this
 machine easy to use? If I have no experience,  can i also operate it well?

Do you provide the user manual and operating videos to support us?
Yes, our machine is designed to use easy, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free, and the operation video is available.

5, If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

6. What is the payment way?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Paypal, etc.


If any question, you can send INQUIRY, or CHAT us, we will be glad to service you!
